Scope Mounting Styles: A Practical Guide

You have bought rings that fit the rail, but the scope bell hits the barrel when you mount it, or you cannot get enough eye relief without the reticle being upside down. This page shows you how to calculate the minimum mounting height and length needed to clear the barrel and achieve a stable cheek weld.

What you need to measure and mount

Before you buy hardware, you need to know your rifle’s geometry. The three variables that dictate your minimum mount height are the objective bell diameter, the tube diameter, and the height of your stock’s comb. Loaders in this spot often ask about air rifle tube specs as well.

• Digital calipers: Essential for precise measurements of the barrel shroud and scope bell. You need these to determine the exact clearance gap.
• Scope rings: Matched to your tube diameter (1-inch, 30mm, or 34mm). Consistency here prevents canting the scope.
• Mounting base: Picatinny, Weaver, or direct attach suitable for your action. Ensure the base is firmly secured to the receiver.
• Leveling tool: To ensure the vertical axis is plumb relative to the ground.

Using a digital caliper is non-negotiable for finding the minimum length. Tape measures are not precise enough to detect the millimeter differences that cause barrel strikes or poor eye relief on precision setups. We go through leveling the scope on a rifle step by step in its own article.

Step 1: Measure the objective bell clearance

Use your digital calipers to measure the diameter of the scope’s objective bell (the front end). This is the part of the scope that gets closest to the barrel.

1. Hold the calipers across the widest part of the bell. Record this measurement in millimeters or inches.
2. Compare this to the diameter of the barrel’s front sight, shroud, or gas block. Measure the width of the handguard if you are mounting an AR-15.
3. Add a 2mm buffer for heat expansion, vibration, and potential debris accumulation between the scope and barrel.

If the scope bell is significantly larger than the barrel, you need a higher mount to bridge the gap without the scope knocking into the handguard or barrel. If the bell is smaller, you have more flexibility with lower mounts, but you must still ensure the tube does not touch the receiver or bolt handle.

Step 2: Check eye relief and cheek weld

The minimum mounting length is often a height issue disguised as a length issue. If the mount is too low, you must lean back to see the full sight picture, causing your cheek to miss the comb. If it is too high, you must stand up out of the stock, breaking your shooting position.

1. Place the scope in a pair of rings on your bench or a workbench fixture.
2. Rest your cheek on the stock comb and pull the bolt to its closed position. Note where your eye sits relative to the reticle.
3. If the bell hits the barrel, the rings are too low for your eye relief. If you cannot see the reticle without leaning back, the rings are too high.

The ‘minimum length’ you need is the fore-aft position where your cheek naturally falls on the comb while the scope clears the barrel. This position is fixed by your body, not the scope. You must mount the scope to meet you, not the other way around. We go through scope tube measurements step by step in its own article.

Step 3: Select the correct ring height

Once you have your clearance data, choose rings that place the scope tube at the correct height. The ‘height’ of a ring is measured from the base of the ring to the center of the scope tube.

• Low height: Best for small 30-34mm objectives on slim handguards. Use this when the comb is high and you need a low profile.
• Medium height: The standard for most 40-50mm objectives on bolt actions. This is the most common choice for general hunting and tactical use.
• High height: Required for large 60mm+ objectives or when using a fixed stock without recoil pads that sits high on the shoulder.

If your rifle has a low comb, you may need to adjust your cheek riser rather than buying high rings, which can make the scope float above your eye level. Verify the ring height specification against the clearance gap you measured in Step 1.

Step 4: Verify with a mock-up test

Never mount a scope directly to the rifle without a final check. Use a mock-up kit or simply tape the rings to the base on a bench. This allows you to adjust fore-aft positioning without risking damage to your firearm’s receiver threads.

1. Position the scope fore-aft to your preferred eye relief, ensuring your cheek rests naturally on the comb.
2. Look through the scope and fire the bolt to your natural cheek position. Confirm the objective clears the barrel by at least the buffer distance calculated earlier.
3. Level the reticle against a plumb line or use a dedicated leveling tool to ensure the vertical crosshair is aligned with gravity.
4. If the alignment is off, adjust the rings on the bench now. It is easier to slide rings on a bench than to torque them on a rifle.

This step confirms that the ‘minimum length’ you calculated actually works with your physical shooting position. Many shooters skip this and end up with a scope that is mounted securely but unusable because the eye relief is wrong.

Common mistakes in mounting length selection

• Mistake: Buying rings without checking the objective bell size. Fix: Measure the bell first; if it is 50mm+, use high rings to avoid barrel strikes.
• Mistake: Ignoring the stock’s comb height. Fix: Adjust your cheek riser if the scope sits too high for your natural eye position. A high scope breaks your shoulder weld.
• Mistake: Mounting too far forward. Fix: Ensure you can reach the bolt handle comfortably without straining your arm. The minimum length is also limited by your ability to operate the action.

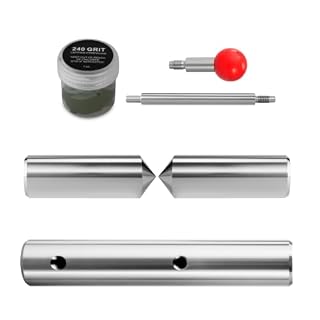

• Mistake: Uneven ring pressure. Fix: Use an alignment tool to verify both halves contact the tube evenly before final torque. Uneven pressure causes the scope to shift during recoil.
