You have the press, but a wobbly mount makes every pull of the handle feel inconsistent. This guide covers the exact hardware, drilling sequence, and leveling checks to lock your RCBS down for good.

In short: Mount the press using through-bolts with large fender washers, driven into a solid wood bench of at least 1.5 inches thickness. The base bolt pattern is consistent across modern RCBS Rock Chucker models, so you can swap presses on the same plate.

Level the frame vertically and check for rearward tilt during the sizing stroke to ensure consistent die alignment. If that sounds like your bench, read up on raising your press height next.

Our pick

Tap to see today's price on Amazon

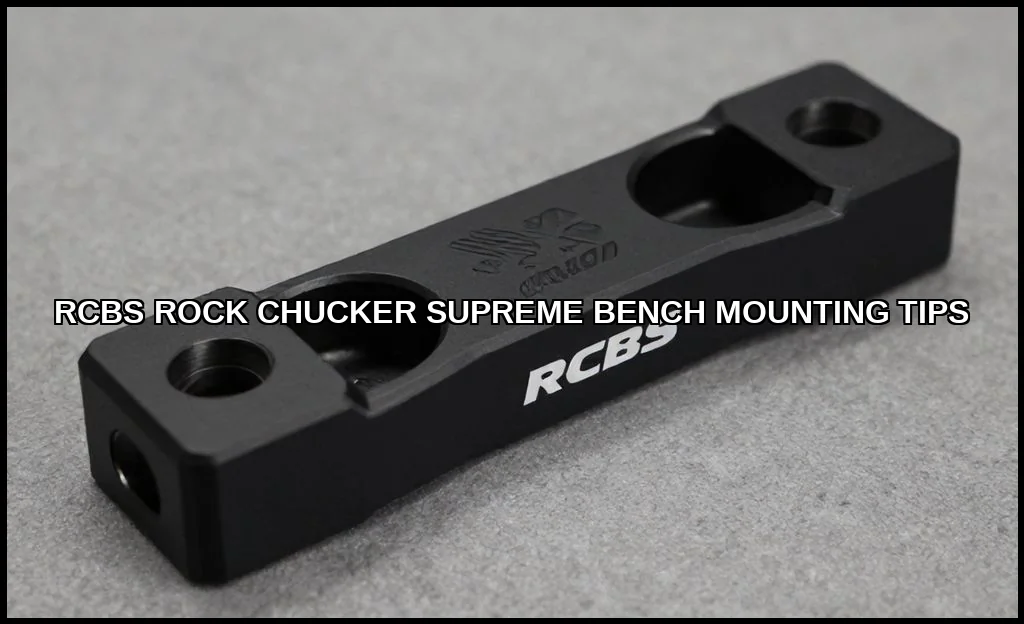

Best for multi-tool benchesRCBS Accessory Base Plate 3

The pre-tapped holes let you swap the press and other tools without drilling new pilot holes each time.

Check price on Amazon

Gather the right hardware before you drill

How to Mount Your RCBS Rock Chucker Supreme Press

Your bench preparation starts with the correct fasteners. Using undersized bolts is the most common error in reloading press installation because it leads to wood stripping or poor clamping force.

For a permanent mount, you need 3/8″-16 or 5/16″-18 bolts long enough to pass through the bench thickness plus a washer stack.

Pair these with large fender washers on top and bottom to distribute load across the wood grain, and use lock washers or nylon-insert nuts underneath to prevent vibration loosening.

If you are using a bench-mounted plate system, the RCBS Accessory Base Plate provides a standardized interface that can hold the press securely without direct bench drilling. Loaders in this spot often ask about beginner rcbs press options as well.

Recommended for this stepRCBS Accessory Base Plate 3

This plate simplifies the mount by providing a stable, pre-tapped surface for the press base.

  • Lets you mount and swap tools without drilling new holes.
  • Letter‑coded holes make mounting quicker.
Check price on Amazon

Prepare the bench surface and check bench stiffness

A wobbly bench will ruin the feel of even a perfectly mounted press. Your reloading bench should be made from laminated hardwood or thick plywood with a minimum thickness of 1.5 inches.

If your bench is lightweight or flexes when you lean on it, reinforce it with a stiffening frame or bolt it to a wall before proceeding.

Clear the mounting area of any finish or veneer where the press base or mounting plate will contact the wood. This ensures a solid, flat seat and prevents the press from sitting on a soft surface that can compress under load.

The other half of this decision is picking a single stage press.

Pro tip: Test your bench by pressing down hard on the corners with your palms. If you feel any give or hear creaks, reinforce the frame before mounting the press. If that sounds like your bench, read up on using a drill to anneal cases next.

Drill pilot holes and install the press

  1. Position the press or mounting plate on the bench in your preferred operating stance, ensuring full handle clearance without hitting walls or shelves.
  2. Mark the center of each mounting hole through the press base using a pencil.
  3. Use a carpenter’s square to verify the alignment against the bench edge.
  4. Drill pilot holes slightly smaller than the bolt shaft diameter to prevent wood splitting. For through-bolting, drill completely through the bench top.
  5. Place the press over the holes and insert bolts from the top with washers.
  6. Add a washer, lock washer, and nut underneath each bolt. Tighten in a crisscross pattern, similar to lug nuts on a car, to ensure even clamping pressure.
Drill pilot holes and install the press

Do not overtighten, as this can crush the wood or strip the threads in a mounting plate. The goal is firm, consistent tension that keeps the base seated flat without flex.

Level the press and check for plumb

A press that is not level or square can cause uneven shell holder wear and subtle sizing issues. Place a machinist’s level across the front of the press ram or on the flat top of the frame.

If the bubble is not centered, use metal or durable plastic shims between the press base and the bench. Do not use cardboard, which compresses and shifts. Also check for plumb by holding a carpenter’s square against the frame.

The frame should be vertical relative to the bench top. This alignment ensures the full force of your stroke is directed straight into the dies, which is critical for consistent ammunition.

Safety first: Never use paper or cardboard shims under a reloading press. They compress over time, changing your alignment and potentially affecting die performance.

Reduce vibration and address common mounting mistakes

Reduce vibration and address common mounting mistakes

Once the press is secure, focus on stability. Vibration is the enemy of smooth operation, especially during priming. Add mass to the bench’s lower shelf using sandbags or lead ingots to dampen resonance.

You can also place rubber or neoprene pads between the press base and the bench, though this is less critical if you are using a solid mounting plate.

If the press tends to tilt rearward during the sizing stroke, install a bench dog or vertical post in a hole directly behind the press base. This pro-tier trick adds immense rigidity at a low cost. Review these common errors to ensure your setup is solid:

  • Mistake: Using lag screws instead of through-bolts on thick benches. Fix: Use through-bolts with nuts for a stronger, more secure clamp that resists rearward pull.
  • Mistake: Forgetting to check bolt tightness after the first use. Fix: Vibration can work fasteners loose; check torque every few hundred rounds.
  • Mistake: Mounting on a flexy bench. Fix: Reinforce the bench frame or move to a heavier, more stable surface before final mounting.

The bottom line

A properly mounted Rock Chucker Supreme is the foundation of reliable reloading. Start with a stiff bench, correct through-bolts, and a level check. Most readers should invest in a dedicated mounting plate or base to allow for future tool swaps and ensure consistent alignment every time. The other half of this decision is rcbs press mounting.

Our top pickRCBS Accessory Base Plate 3
  • Lets you mount and swap tools without drilling new holes.
  • Letter‑coded holes make mounting quicker.
Check price on Amazon

Frequently asked questions

Do all RCBS Rock Chucker models share the same mounting pattern?

Yes, modern RCBS Rock Chucker and Supreme presses share the same base bolt pattern. This means you can swap between models on the same mounting plate or bench holes without needing to redrill. Always verify the pattern with a template if you are moving between very old and very new generations.

What is the best way to mount an RCBS press on a bench?

The best method is through-bolting with 3/8″ or 5/16″ bolts, using large fender washers on both sides to distribute load. Alternatively, use a pre-tapped mounting plate like the RCBS Accessory Base Plate, which allows you to secure the press to the plate and then clamp the plate to the bench. Both methods provide superior stability compared to lag screws alone.

Is the mounting on a Rock Chucker Supreme the same as a Rock Chucker?

Yes, the mechanical mounting interface is identical for both the standard Rock Chucker and the Supreme version. The Supreme adds features like a heavier base or different finish, but the bolt pattern and base geometry remain consistent for compatibility with the same mounting hardware and plates.
