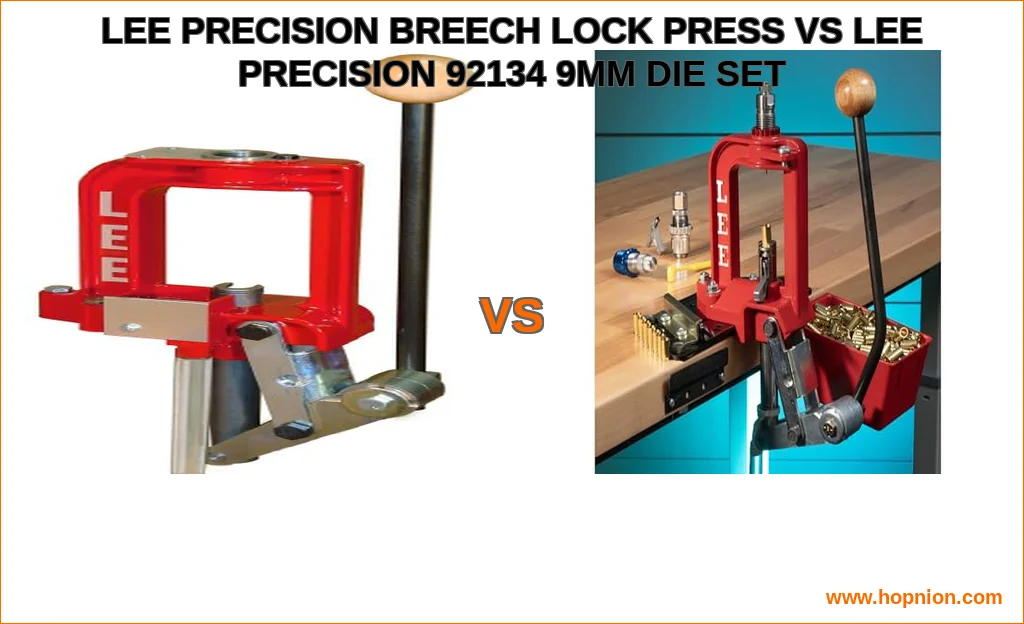

Lee Breech Lock Press vs 9mm Die Set: Key Differences

You are staring at two boxes: a reloading press and a set of dies, wondering if they actually work together or if you are missing a critical link. This page clears up the confusion by explaining exactly how the Lee Breech Lock system turns two separate items into one seamless workflow.

The differences at a glance

Feature	Lee Breech Lock Press	Lee 9mm Die Set
Role	Applies force and holds dies	Resizes, expands, and crimps brass
Key Component	Quick-change bushing system	Carbide sizer ring
Requires Lubricant	Depends on the dies	No (for 9mm carbide)
Best For	Multi-caliber switching	Pistol cartridge precision

How the Breech Lock system changes your bench

Standard presses require you to thread dies in and out of the head. Every time you switch calibers, you must re-measure and re-set the depth. That is slow and prone to error. You often find yourself using a micrometer or depth gauge just to get the seating depth right again, which adds minutes to every batch change. The other half of this decision is comparing breech mechanisms.

The Lee Breech Lock system flips this logic. You screw the die into a specific bushing once. You set the depth on the bushing. Then you lock that bushing into the press. The bushing becomes the interface between the die and the press head.

This means your settings are saved on the tool, not the machine. When you switch to another caliber later, you just grab the pre-set bushing and twist it in. It cuts setup time drastically. You no longer waste time adjusting the head screws for every single die change.

The Press provides the physical platform for this. The Die Set is built to fit into these specific bushings. Without the press, the dies are just loose parts. Without the dies, the press is just a handle. They are co-dependent components.

For a shooter who shoots 9mm, .45 ACP, and maybe .223, this system saves significant time. You set the 9mm bushing to 1.360 inches. You store it. Next month, you twist it in, and it is at 1.360 inches exactly. No guesswork. No re-priming of dies.

Why carbide dies matter for 9mm

Rifle dies require case lube to prevent sticking. Pistol dies like 9mm can often skip this step if they use carbide rings. This is a major workflow difference that beginners should understand before buying. Loaders in this spot often ask about lee 9mm die set as well.

The Lee 92134 set uses a carbide sizer. The hard ring wipes the case down to spec without binding. You simply wipe the case clean and run it through.

There is no need to sprinkle lube on the cases or deal with a lube block. This eliminates a messy step and reduces the risk of inconsistent resizing caused by uneven lube application.

It is a significant quality boost for beginners who want to keep their bench clean.

However, not every pistol die works without lube. Straight-walled cases like 9mm, .40, and .45 generally work well with carbide. Tapered cases like .223 and .308 always need lube, even in pistol-adjacent applications. The 9mm set is optimized for the most common pistol cartridge in the US, so it prioritizes this convenience.

The Die Set wins on convenience here. The Press merely supports the operation. But the press’s O-frame design is strong enough to handle the extra force sometimes needed to push stubborn brass through a carbide ring. You will not damage the press by using it on 9mm.

Accuracy and consistency in single-stage loading

A single-stage press forces you to perform one operation per handle pull. You resize, then you expand, then you crimp. This is slower than a progressive press, but it offers superior control. You can inspect every round at every stage before moving to the next step.

The consistent leverage of the all-steel linkage in the press ensures the force is uniform. The precision dies ensure the brass is sized exactly. Together, they produce match-grade groups that are hard to achieve with automated, high-speed setups.

When you load slowly, you catch errors. If a bullet is seated too deep, you see it before you prime the case. If a case is slightly off-spec, you catch it in the sizer.

Throughput is about 100 to 150 rounds per hour once you find a rhythm. That is plenty for a full range session. If you need to load 1,000 rounds a week, this system will feel slow. But for the shooter who values the craft of reloading, the single-stage pace is a feature, not a bug. It forces focus.

The Press wins on the stability of the stroke. The Dies win on the final dimensions of the cartridge. You need both to get the accuracy. A great die in a wobbly press will not save you.

A wobbly press with a great die is not a problem if the die is precise. But the Breech Lock system keeps the die precise because it does not move during the stroke. If that sounds like your bench, read up on assessing the workflow efficiency next.

Which should you buy?

• The New Reloader: Get both. The simplicity of no-lube carbide and quick-change dies removes the intimidation factor of reloading. Start with the combined kit to ensure compatibility.
• The Multi-Caliber Shooter: Prioritize the Press. The Breech Lock system is the key to switching between 9mm, .45 ACP, and .223 without re-setting dies every time. The press is the scalable platform.
• The Match Shooter: Prioritize the Dies. If you already have a stable press, the precision of the carbide sizer and factory crimp die is your upgrade path to better groups. Focus on the tooling quality.
• The Budget Builder: Buy the combined kit. Purchasing the press and dies together is usually cheaper and ensures compatibility out of the box. It is the most efficient entry point.
