Two tools sit on the reloading bench, each promising a smoother workflow. One is a dedicated, bench-mounted specialist. The other is a handheld multi-tool designed for versatility. The Hornady Cam-Lock 050140 case trimmer and the Ludex Case Prep Multi-Tool represent fundamentally different philosophies in case preparation. Your choice between them dictates not just how you trim brass, but how you structure your entire reloading process.
Honest OpinionThis isn’t just about picking a tool; it’s about choosing a system. Do you prioritize absolute precision and speed in brass trimming above all else? Or is having a compact, all-in-one case prep tool for multiple tasks more valuable for your space and style? We’re breaking down every detail to give you the clear picture you need.

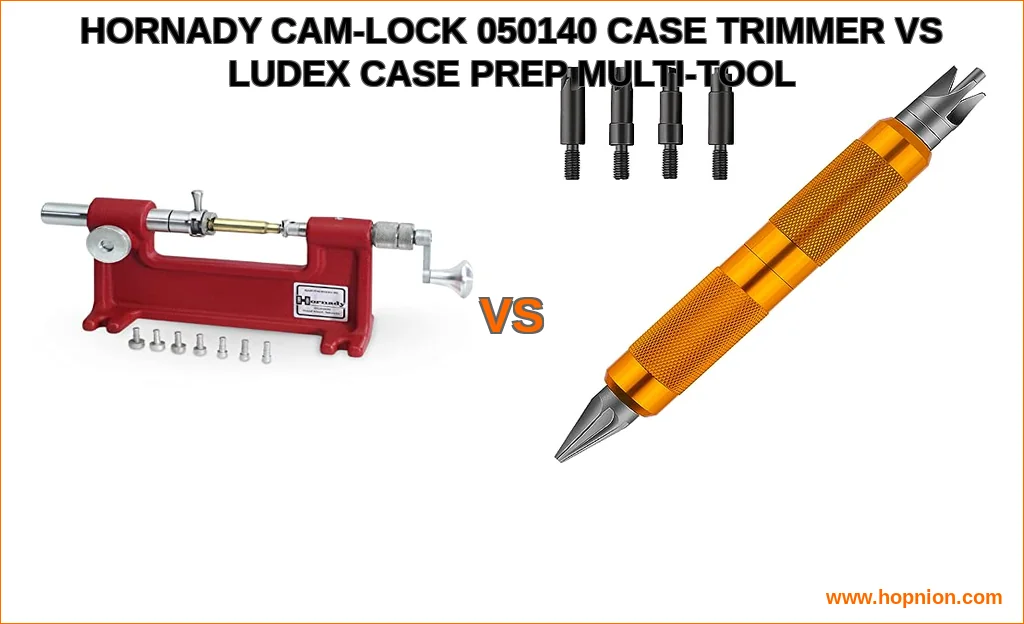

Head-to-Head: Hornady Cam-Lock 050140 vs Ludex Case Prep Multi-Tool
At first glance, these two reloading accessories couldn’t be more different. The Hornady is a classic, purpose-built machine. The Ludex is a modern, consolidated gadget. ir core design intent is the first step to knowing which belongs on your reloading bench.
The Hornady Cam-Lock 050140 is engineered for one primary mission: achieving perfect case length consistency. It’s a bench-mounted vs. handheld decision right out of the gate. This tool is meant to be permanently affixed and called upon for serious volume trimming. The Ludex, conversely, is the jack-of-all-trades. Its a multi-station tool you hold in your hand, moving from chamfer deburr to primer pocket cleaning without changing stations.
| Feature | Hornady Cam-Lock 050140 | Ludex Case Prep Multi-Tool |
|---|---|---|
| Primary Function | Dedicated case trimming | Multi-function case preparation |
| Design | Bench-mounted unit | Handheld, all-in-one tool |
| Key Mechanism | Cam-action lock lever | Interchangeable tool heads stored in handle |
| Caliber Range | Uses pilots for .22 to .45 cal (7 included) | .17 to .45 caliber |
| Included Tools | Cutting head, 7 pilots, requires separate Hornady shell holders | Inside/outside deburr tools, large/small primer pocket cleaners & reamers |
| Operation | Lever locks case, micro-adjust cutter trims | Manual twisting for each prep function |
| Check current price on Amazon | Check current price on Amazon |
Core Functionality & Design Breakdown
Let’s get into the nuts and bolts. The Hornady’s genius is in its cam-action lock. You place a case into a standard Hornady shell holder, turn the lever to lock it rigidly in place, and then feed the case onto the cutter pilot. This system holds the case perfectly square to the cutter, which is the foundation for precision. The cutter itself allows for .001-inch micro-adjustments, a feature serious reloaders demand. It includes seven pilots covering popular calibers from .22 to .45.
The Ludex takes a compartmentalized approach. The handle itself unscrews to store all the included accessories: the inside and outside deburring tools and the large and small primer pocket uniformer and cleaner heads. You thread the desired head onto the handle and go to work. Its VLD chamfer/reamer is designed for a smooth bullet seating process. Honestly speaking, the convenience of having every tool in one place, with no loose parts, is a major draw for reloaders with limited space.
What About Missing Features?
A thorough reloading tool comparison requires looking at what’s not included. The Hornady is a trimmer, period. It doesn’t chamfer, deburr, or clean primer pockets. Those are separate steps requiring separate tools. The Ludex, while versatile, lacks a dedicated trimming mechanism. It’s a prep tool for after trimming. This fundamental distinction is critical. considering long-term maintenance, the Hornady’s replaceable, ultra-hard tool steel cutting head is a known entity with available parts. The availability of replacement parts for multi-tools like the Ludex can be a consideration for long-term durability.
Performance & Speed in the Reloading Process
Which is faster, Hornady Cam-Lock or Lyman Case Prep? That’s a trick question, because they do different jobs. But for their respective tasks, speed profiles differ wildly.
For trimming large batches of brass to a consistent length, a dedicated trimmer like the Hornady is unbeatable. Once mounted and set up, the cam-action lock allows for quick, secure case handling. The motion becomes rhythmic: insert, lock, trim, release. For pure brass trimming throughput, a bench-mounted tool will always outpace a handheld multi-function device. This is the core argument for the manual vs multi-function debate when speed for a single, repetitive task is the goal.
The Ludex shines in the post-trim phase. Instead of reaching for four different tools to chamfer, deburr, and clean primer pockets, you have one. You swap heads in seconds. This reduces clutter and tool-searching time, potentially speeding up the overall case prep stage. My honest assessment is that the Ludex saves you time in setup and tool management, while the Hornady saves you time in the actual trimming action itself.
- Hornady for Speed: Batch trimming of 50+ cases. The fixed setup and lever action are optimized for repetition.
- Ludex for Convenience: Completing multiple prep tasks on a smaller batch of cases without leaving your seat or clearing bench space.
Price, Value, and Long-Term Durability
Evaluating the cost effective case prep Hornady or Lyman question depends entirely on what you already own. The Hornady Cam-Lock is an investment in a single, high-performance function. You’re paying for precision engineering, micro-adjustability, and that robust cam-action lock mechanism. However, remember it’s just the trimmer. You’ll need to budget for shell holders and separate chamfer/deburr tools.
The Ludex Case Prep Multi-Tool offers immediate, all-in-one utility for a typically lower entry price. You get four tools in one package right now. For a new reloader or someone wanting to minimize tools, the value is obvious. Durability is a key question. The Hornady uses a large diameter, replaceable cutting head made of ultra-hard tool steel. The Ludex relies on precision machining and high-hardened steel for its various heads. From my honest perspective, the Hornady’s design has a long, proven track record of enduring years of use, with a simple path to renewal via a new cutter head.
An often-overlooked factor is integration with power drill adapters. Many bench-mounted trimmers, including designs like the Hornady, can often be adapted for power driving, turning a manual crank into a semi-automatic process. This is a huge efficiency booster the Ludex’s handheld design can’t match. This kind of upgrade path is something to consider for future workflow speed.
Final Verdict: Which Tool is Right for Your Bench?
So, which one wins the title of best case trimmer 2024? If we’re talking strictly about trimming precision and efficiency, the Hornady Cam-Lock is the specialist that’s hard to beat. Its design is focused on delivering flawless case length consistency shot after shot. If your primary pain point is quickly and accurately processing large volumes of fired brass, this is your tool. You can read more about setting up a dedicated reloading station on our site.
The Ludex Case Prep Multi-Tool is the ultimate consolidator. It’s perfect for the reloader who hates clutter, has a small workspace, or doesn’t process brass in massive batches. Its also an excellent secondary tool alongside a dedicated trimmer for handling all the finishing work. If you want my honest opinion, it’s less of a direct competitor to the Hornady and more of a complementary accessory that solves a different set of problems.
Choose the Hornady Cam-Lock 050140 if:
Precision trimming is your #1 priority.
You process brass in high volume.
You have the bench space for a mounted tool and already own (or will buy) separate prep tools.
You value a proven design with a clear path for part replacement.
Choose the Ludex Case Prep Multi-Tool if:
You want a single, portable tool for chamfer, deburr, and primer pocket work.
Your reloading volume is moderate and batch size is smaller.
Bench space is at a premium.
You’re looking for an affordable way to get all essential case prep functions in one purchase.
Both tools are capable and serve their intended purposes well. For the precision rifle shooter where thousandths of an inch matter, the Hornady’s call is strong. For the versatile hunter or pistol shooter looking for streamlined efficiency, the Ludex makes a compelling case. Your reloading workflow efficiency hinges on this choice. Always consult the manufacturer’s authority guide for the latest specifications and support.
In the end, your bench, your budget, and your typical caliber volume make the final call. This Honest Opinion is that there’s no universal winneronly the right tool for your specific reloading journey. And remember, just as the right case prep tool matters, so does a solid foundation for your rifle, like right picatinny mounted accessories for a stable shot.
