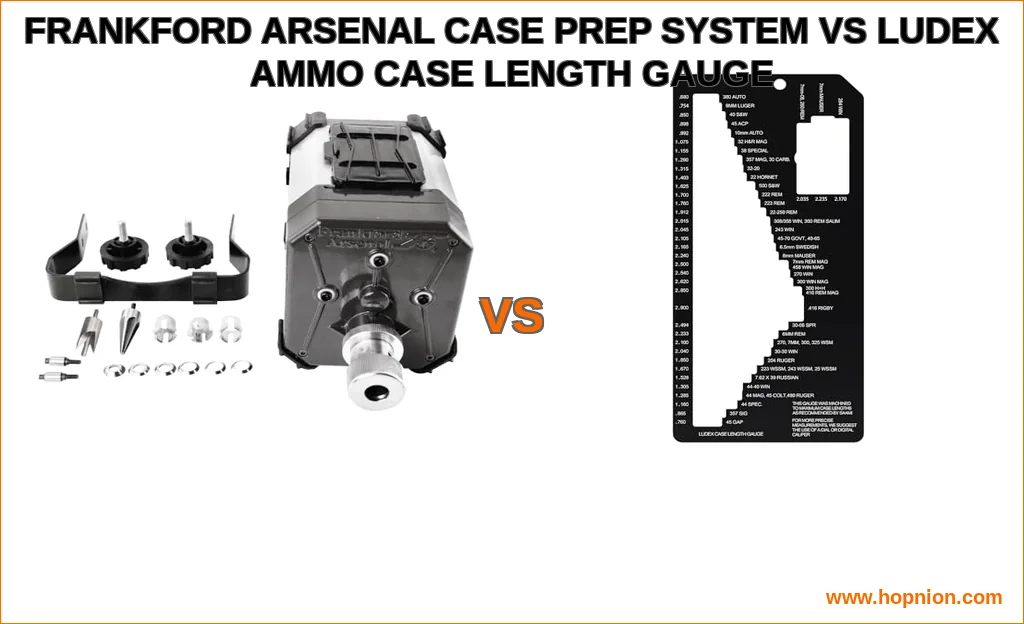

Getting your case length right isn’t just a suggestion; it’s a cornerstone of safe, consistent reloading. A case that’s too long can prevent chambering or create dangerous pressure spikes, while one that’s too short can lead to poor ignition and accuracy issues. This fundamental measurement dictates whether you need to trim, and by how much, making a reliable gauge or trimmer indispensable. Two tools often find themselves on a reloader’s shortlist: the comprehensive Frankford Arsenal Platinum Series Case Trim and Prep System and the straightforward Ludex Ammo Case Length Gauge. They serve different primary functions, but both aim to solve the same core problemensuring your brass is within spec.
between a full case prep station and a dedicated measuring tool depends entirely on your workflow and needs. To be completely honest, a beginner might prioritize simple verification, while a high-volume shooter likely wants an all-in-one processing solution. We’re going to break down each product’s actual capabilities, compare them head-to-head, and help you decide which tool earns a permanent spot on your reloading bench setup.
Frankford Arsenal Case Prep System: The All-in-One Workhorse
The Frankford Arsenal Platinum isn’t just a gauge; it’s a complete processing center. Its designed for the reloader who wants to take resized brass and perform multiple trimming and preparation steps in one powered unit. Its core function is as a precise ammo case trimmer, but it bundles several other essential tools into a single system.
Features & Core Functionality
This system is built around a durable motor and drivetrain, promising longevity through thousands of rounds. The key to its reloading precision is how it handles cases: the trimmer indexes on the case shoulder, not the mouth, which promotes consistent length and superior concentricity. This method is generally considered more accurate than trimmers that reference the case mouth, which can be uneven.
- Versatile Collet System: It works with a wide range of shouldered rifle cases, from .17 Remington up to .460 Weatherby. The adjustable collet and six included shoulder bushings cover a lot of ground.
- Integrated Toolset: Beyond trimming, it comes with tools for inside chamfering, deburring, and cleaning both large and small primer pockets. This turns it into a true case preparation station.
- Built for Durability: It uses hardened High-Speed Steel (HSS) cutters designed to stay sharp through extensive use. The unit also has a built-in storage box to keep all components organized.
Honestly speaking, its value lies in consolidation. Instead of separate hand tools or multiple single-purpose devices cluttering your bench, this system aims to streamline the entire post-resizing preparation process. For someone processing hundreds of rifle cases, the speed and integrated workflow are major advantages. You can read more about optimizing your reloading workflow on our site.
Ludex Ammo Case Length Gauge: The Specialized Verifier
The Ludex gauge takes a completely different, minimalist approach. It doesn’t trim, chamfer, or deburr. Its sole purpose is to answer one critical question: “Is this case too long?” It’s a dedicated reloading case gauge for measurement only, functioning as a rapid go/no-go gauge for case length.
Features & Core Functionality
Constructed from a hard alloy, the Ludex gauge is a simple, durable block. It features laser-etched markings for over 70 popular cartridges, designed not to fade. You drop a fired or resized case into the appropriate chamber, and if the case mouth sits above the gauge’s surface, it signals that trimming is required.
- Pure Measurement: It provides an easy and accurate method for case length measurement, suitable for both fired and resized brass. It quickly sorts out over-length cases.
- Broad Cartridge Compatibility: Covering 70 cartridges makes it highly versatile for reloaders who work with multiple calibers without needing to change bushings or collets.
- Simplicity and Speed: The process is instantdrop in, check, move on. It requires no setup, calibration, or power, making it perfect for a final check before loading.
From my honest perspective, the Ludex excels in its simplicity. Its the tool you use to verify the output of your trimmer or to quickly check a batch of range brass before deciding what needs processing. Its a classic example of a tool that does one job very well. For insights on other precision tools, check out our picatinny accessory guides.
Head-to-Head Comparison: Accuracy, Speed, and Usability
Putting these two tools side-by-side is a comparison of philosophies: comprehensive processing versus focused verification. Heres how they stack up across key dimensions for a reloader.
| Feature | Frankford Arsenal Platinum Prep System | Ludex Ammo Case Length Gauge |
|---|---|---|
| Primary Function | Trimming, chamfering, deburring, primer cleaning (a full prep station) | Measuring case length only (a verification gauge) |
| Accuracy & Precision | High; indexes on case shoulder for consistent trim length and concentricity. | High; provides a clear pass/fail measurement against a machined standard. |
| Operation Speed | Fast for processing many cases through multiple steps sequentially. | Instant for checking individual case length. |
| Ease of Use | Requires setup (collet/bushing change), power, and learning the steps. | Extremely simple; no setup, no power, drop-in operation. |
| Versatility | Trims/preps many calibers (.17 Rem to .460 Wby) with included adapters. | Measures 70+ specific cartridges with no adapters needed. |
| Long-Term Maintenance | HSS cutters will eventually need sharpening/replacement; motor is durable. | Virtually none; a solid block of alloy with etched markings. |
| Compatibility with Progressive Setups | Best as a separate, off-press processing station for batch work. | Excellent for quick final-case checks before cases enter the press. |
| Check current price on Amazon | Check current price on Amazon |
Diving Deeper into the User Experience
For the Volume Processor: If you’re decapping, resizing, and then prepping 500 .223 cases, the Frankford Arsenal system is a time-saver. You trim, chamfer, deburr, and clean primer pockets with minimal tool switching. The motor does the hard work. Speaking honestly, the initial setup for a new caliber takes a few minutes, but once it’s dialed in, it’s a production line.
For the Meticulous Checker or Beginner: The Ludex gauge is about confidence. After trimming on any device (even the Frankford), you can quickly verify every case meets SAAMI spec. It’s also the perfect tool for the new reloader wondering how to measure case length for reloading without complexity. My honest assessment is that its a fantastic teaching tool and a universal quality control checkpoint.
A point often missed in reloading tool accuracy discussions is calibration. The Frankford Arsenal requires you to set the trim length correctly using the provided wrench and a reference casea simple but crucial user calibration. The Ludex gauge is pre-calibrated by its machining; your job is simply to read it correctly. Both methods are valid, but they place the responsibility for initial setup in different places.
Final Verdict: Which Tool is Right for Your Bench?
This isn’t a matter of one tool being objectively better. It’s about which tool solves your specific problem. The right choice fundamentally depends on your role in the reloading process.
Choose the Frankford Arsenal Platinum Case Trim and Prep System if:
- You process high volumes of rifle brass and want an efficient, all-in-one station.
- You value having trim, chamfer, deburr, and clean functions in a single powered unit.
- Your focus is on active case preparation and you need a precise, shoulder-indexing ammo case trimmer.
- You’re willing to invest in a system for long-term, high-volume use.
Choose the Ludex Ammo Case Length Gauge if:
- You need a fast, foolproof way to check case length before loading (a perfect final inspection tool).
- You want a simple tool for teaching or learning the basics of case length measurement.
- You already have a trimmer (even a hand trimmer) and want a dedicated, reliable verification standard.
- You’re looking for a best budget case length gauge for beginners that is durable and requires no maintenance.
- You want to quickly sort range brass to identify which cases actually need trimming.
The Synergy Play
Heres my honest take: for a serious reloader, these tools can be complementary, not mutually exclusive. You could use the Frankford Arsenal system to efficiently trim and prep your brass. Then, you could use the Ludex gauge as a final quality control check on every single case before it goes into the press. This two-step process ensures the trimmer is set correctly and catches any outliers, maximizing confidence in your ammunition. This is the kind of layered process that defines a professional reloading bench setup.
When evaluating any reloading precision tools, always cross-reference measurements with an official source for cartridge dimensions. Its the only way to be sure your tools are helping you build safe ammunition.
So, in the debate of Frankford Arsenal case prep system review vs Ludex, the winner is the one that matches your workflow. If you’re building a processing hub, Frankford Arsenal offers a powerful, integrated solution. If you need a definitive, simple answer on case length, the Ludex gauge is a master of its single craft. For more unfiltered breakdowns on gear that matters, your next stop should be our Honest Opinion homepage. Now, go make some safe, accurate rounds.
