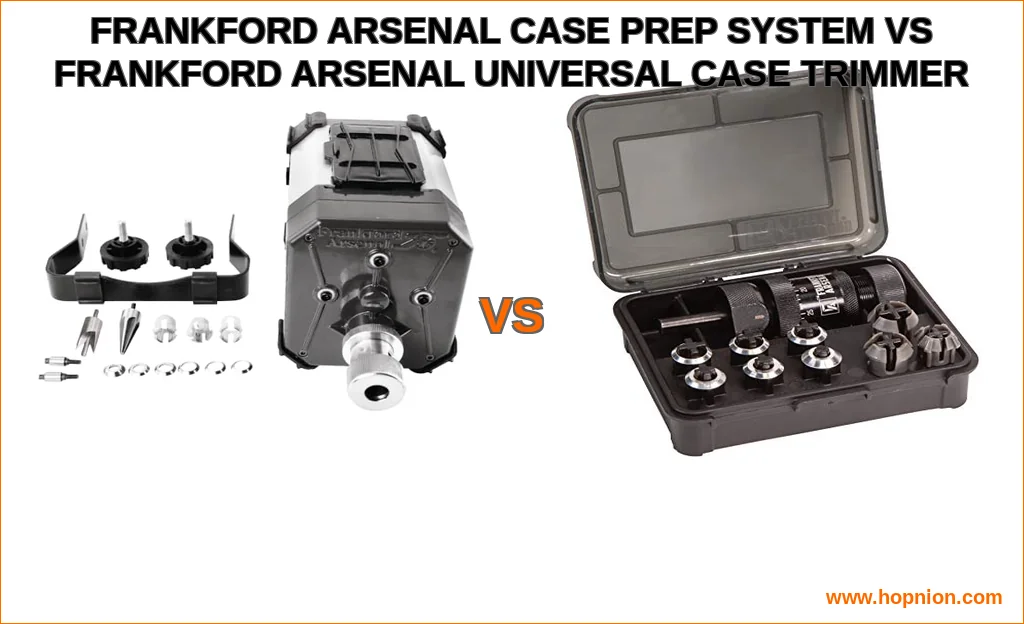

Frankford Arsenal Case Prep System vs Trimmer Review

You are staring at two Frankford Arsenal tools that trim the same brass but work in opposite ways. One is a powered station; the other is a manual attachment for your drill. This breakdown tells you which one saves you time on your specific bench.

The differences at a glance

Feature	Platinum Case Prep System	Universal Trimmer
Operation	Self-contained motorized station	Manual attachment for drill/press
Functions	Trim, chamfer, deburr, clean pockets	Trim only
Caliber Range	.17 Rem to .460 Weatherby	.17 Rem to .460 Weatherby
Precision Control	Shoulder indexing	Built-in depth micrometer
Setup Time	Permanent bench space	Modular, stores away

Both tools use the same universal collet system, so your existing collet investments carry over between the two. The core difference is that the Platinum system adds a motor and extra tools, while the Universal Trimmer relies on your existing power source. It helps to understand rotary trimmer 2 before going further.

When you buy the Platinum system, you are buying a complete workflow. It includes the inside and outside chamfer tools, primer pocket cleaning tools, and a storage box. The Universal Trimmer is a component; it is just the cutting head.

You must supply the drill, the power source, and any separate hand tools for deburring or chamfering. This distinction is critical for planning your bench layout and budget.

Workflow speed: The Platinum system wins on volume

The Platinum Case Prep System is built to handle all case preparation steps in one place. Instead of moving cases between a trimmer, a chamfer tool, and a primer pocket cleaner, you load the case once. The motor drives the collet, and you simply push the case through the stations in sequence.

This integration matters when you are trimming 500 rounds of .223 or 300 rounds of 9mm. The Universal Trimmer requires you to stop the drill, remove the case, and manually perform chamfering and deburring with separate hand tools. That constant swapping adds minutes to every batch.

For high-volume shooters, the Platinum system reduces bench clutter and workflow friction. It turns case prep into a linear process: load, trim, chamfer, deburr, clean, eject. For the detail, see our notes on manual vs powered case trimmers.

The motorized nature means you do not have to manually turn a chuck or apply pressure to a hand tool, reducing fatigue during long sessions.

The built-in storage keeps the specialized tools within arm’s reach, preventing the common issue of losing a specific burr bit between calibers.

Precision capability: The Universal Trimmer wins on fine-tuning

If you are benchrest or long-range, the depth micrometer on the Universal Trimmer is the deciding factor. It allows you to set the cut length to within thousandths of an inch. You can make micro-adjustments between cases or between loads without remeasuring every time.

The Platinum system indexes on the case shoulder, which ensures consistency relative to the shoulder datum. However, it lacks the manual micrometer dial for fine-grained adjustments. It is a ‘set and forget’ tool, not a ‘dial in’ tool. While it is accurate, the Universal Trimmer offers a level of control that shooters chasing sub-MOA groups often prefer.

The Universal Trimmer’s brass shaving ejection port also keeps the cutter clear, maintaining consistent cut depth over time. For shooters who track trim length to the 0.001 inch, the Universal Trimmer is the superior precision instrument. We go through frankford arsenal reloading step by step in its own article.

The hardened stainless-steel cutter is designed to hold its edge longer than standard high-speed steel, reducing the need for frequent sharpening during critical match preparation.

Ease of use and setup: Which fits your bench?

The Platinum system is a dedicated station. It takes up permanent space on your bench but requires zero external setup. You plug it in, install the collets, and start reloading. It comes with a storage box that keeps the included chamfer, deburr, and primer pocket cleaning tools organized.

The Universal Trimmer is modular. You attach it to a 1/2-inch drill or drill press, use it, and then store it in its plastic case. This saves bench space but requires you to maintain a separate system for chamfering and deburring.

If your bench is tight on space, the Universal Trimmer’s ability to be removed and stored is a major advantage. If you have a dedicated reloading corner, the Platinum system’s ‘always ready’ state is more convenient.

You do not have to hunt for a drill or mount a tool. The Platinum system also reduces the risk of losing small accessories because everything is contained in its housing. We cover lyman vs frankford in a guide of its own.

For a compact shop, the Universal Trimmer is the practical choice, provided you have a stable drilling platform available.

Which should you buy?

• Buy the Platinum Case Prep System (P1) if you reload in high volumes (200+ rounds per session) and want a single station that handles trimming, chamfering, deburring, and primer pocket cleaning.
• Buy the Universal Trimmer (P2) if you are a precision shooter who needs micrometer-level adjustments, have a drill press, and already own or plan to buy separate case prep hand tools.
• Consider the Universal Trimmer if you have limited bench space and want to keep your toolset modular and portable.
• Stick with hand tools if you reload very low volumes; the cost of either tool may not be justified over a manual trimmer and hand deburrers.
